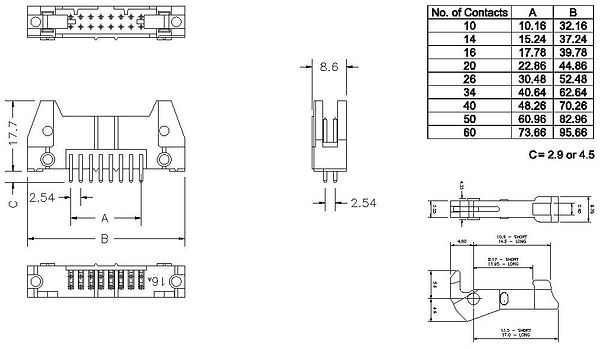

SPMHxxS-xxxx

Male Header, 2.54mm Pitch, THT, Straight Contacts

PACKING UNITS

Polystyrene Sheets (30cmx13cm)

SPMH 10S-XXX0 - 135

SPMH 14S-XXX0 - 125

SPMH 16S-XXX0 - 115

SPMH 20S-XXX0 - 90

SPMH 26S-XXX0 - 70

SPMH 34S-XXX0 - 65

SPMH 40S-XXX0 - 60

SPMH 50S-XXX0 - 50

SPMH 60S-XXX0 - 50

Material

Contacts:   Phosphor Bronze

Insulator:   PBT, Glass Reinforced, UL94V-0

Electrical Specifications

Current Rating:   1.0A

Contact Resistance:   20mOhm max.

Insulation Resistance:   5000MOhm min.

Withstanding Voltage:   1000V AC for 1 minute

Operating Temperature: -40°C to +105°C

Product Variations
